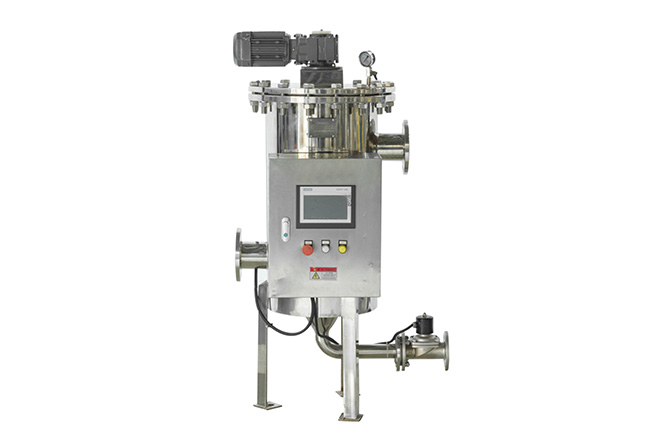

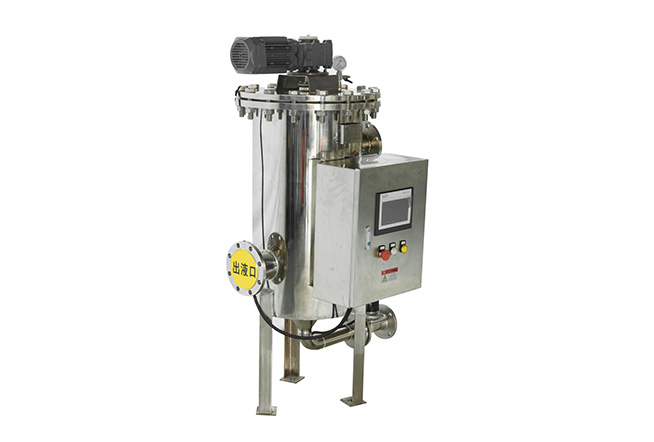

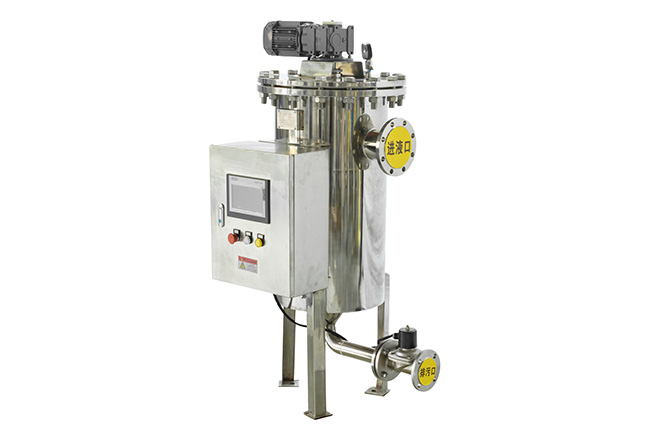

The Auto self cleaning filter is a precision device that utilizes a filter screen to directly intercept impurities in water, removing suspended solids and particulates to reduce turbidity and purify water quality.
It minimizes the generation of system fouling, bacteria, algae, and rust, thereby ensuring water purification and protecting the normal operation of other system equipment.
The Auto self cleaning filter is a precision device that utilizes a filter screen to directly intercept impurities in water, removing suspended solids and particulates to reduce turbidity and purify water quality. It minimizes the generation of system fouling, bacteria, algae, and rust, thereby ensuring water purification and protecting the normal operation of other system equipment. Water enters the fully automatic filter housing through the inlet. Thanks to intelligent design (PLC, PAC), the system automatically detects the degree of impurity accumulation and signals the drain valve to automatically discharge contaminants.
Automatic drainage with uninterrupted flow during self-cleaning, eliminating the need for a bypass. The cleaning cycle is adjustable, with minimal drainage water consumption not exceeding 1% of total flow.
Flexible installation orientation: vertical, horizontal, or inverted in any position.
Equipped with motor overload protection for effective motor safeguarding.
Filters raw water while automatically cleaning and flushing filter elements, offering high automation and large processing capacity.
Widely used in circulating or non-circulating cooling water systems, heat exchange systems, centralized heating systems, and hot water boiler systems to protect cooling equipment, heat exchangers, boilers, and similar components. Suitable for diverse industries including construction, chemical, power generation, metallurgy, rubber, papermaking, light textiles, coal, food processing, and more.
